Home > Product Show > ELEVATOR ELECTRICAL DEVICE > Light curtain > Elevator Light curtain OSS-LC-A

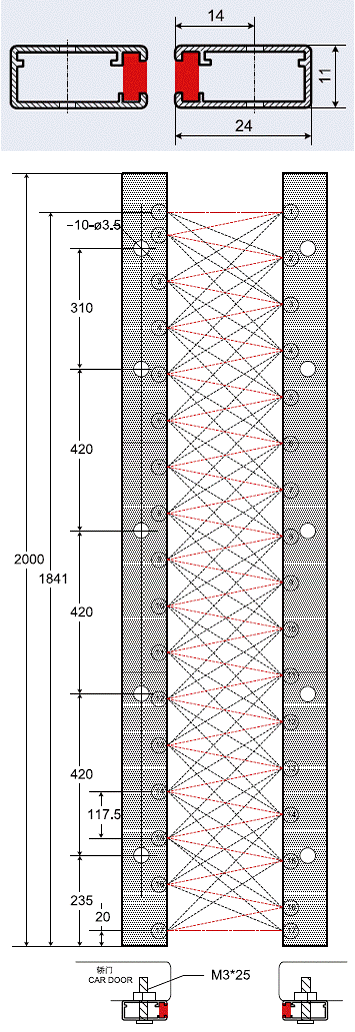

Elevator Light curtain OSS-LC-A
Product discription:
Model No: OSS-LC-A
Detail Product Description: Elevator Light curtain OSS-LC-A
| Operating environment | –20℃––+65℃ |
| Scan beams | 94 beams |
| Vertical tolerance | ±10mm,10° |
| Horizontal tolerance | ±5mm,7° |
| Detecting height | 20mm–1841mm |
| Response Time | 53.2ms |
| Power consumption | 3W |
| Signal output | Relay contact,1NO/1NC |
| Power lndicator | The green LED |
| Status indicator | The red LED |
| Buzzer in receiver | 15s after beam obstructed continuously |
