Home > Product Show > ELEVATOR ELECTRICAL DEVICE > Light curtain > Elevator Light curtain OSS-LC-W

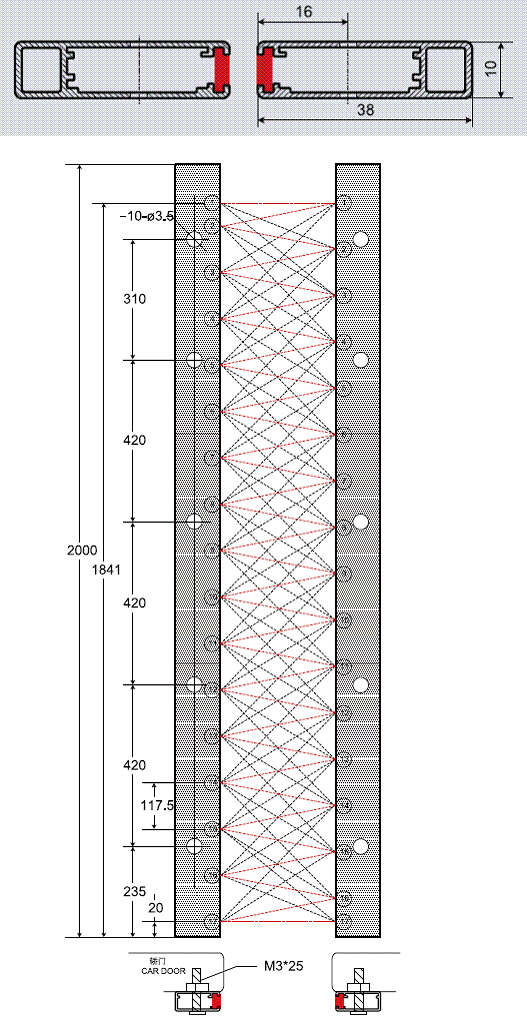

Elevator Light curtain OSS-LC-W
Product discription:
Model No: OSS-LC-W
Detail Product Description: Elevator Light curtain OSS-LC-W
Operating environment –20℃––+65℃ Scan beams 94 beams Vertical tolerance ±10mm,10° Horizontal tolerance ±5mm,7° Detecting height 20mm–1841mm Response Time 53.2ms Power consumption 3W Signal output Relay contact,1NO/1NC Power lndicator The green LED Status indicator The red LED Buzzer in receiver 15s after beam obstructed continuously
